ECM ICBP Eco Flex 200 for sale

SOLD

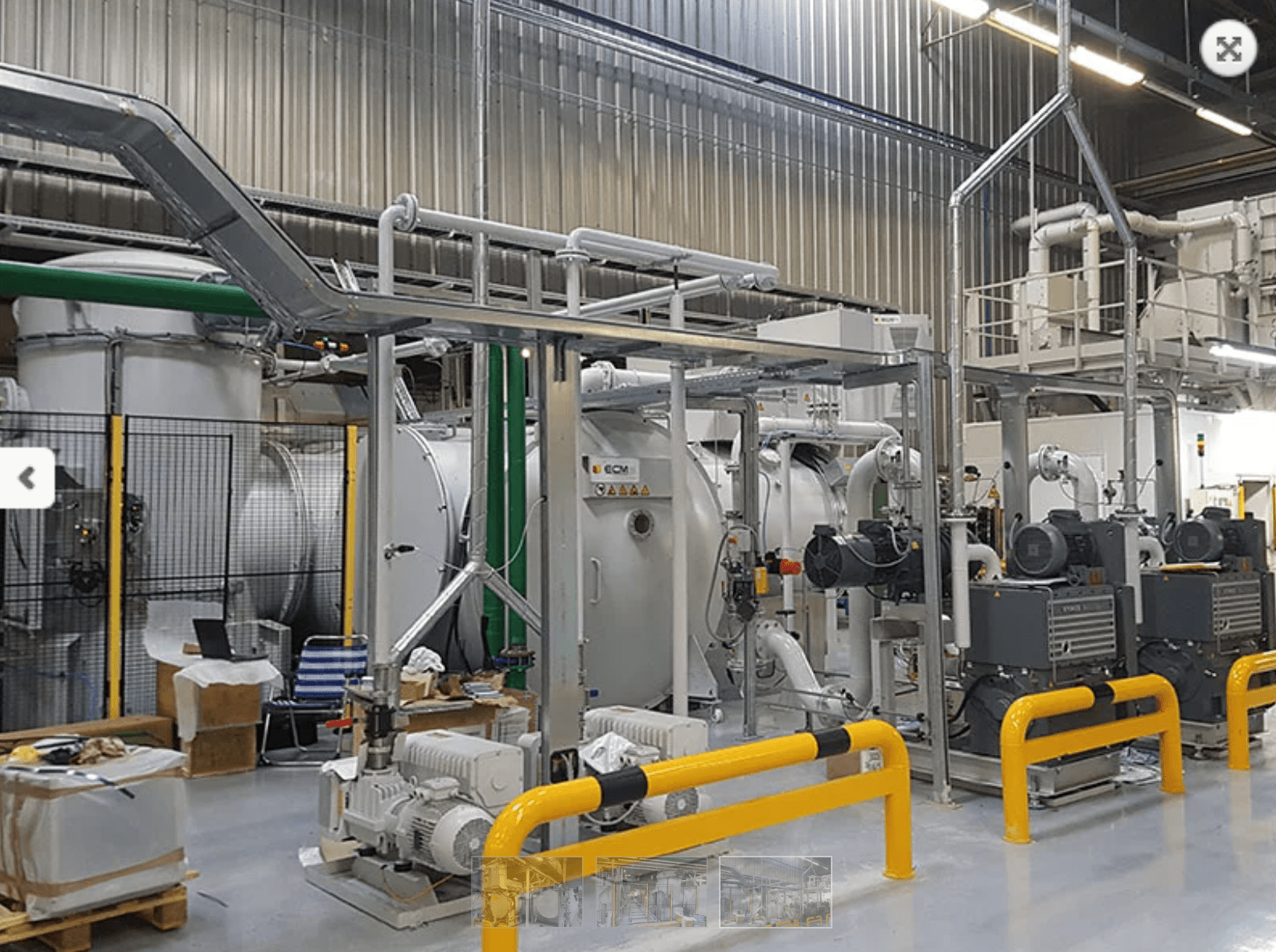

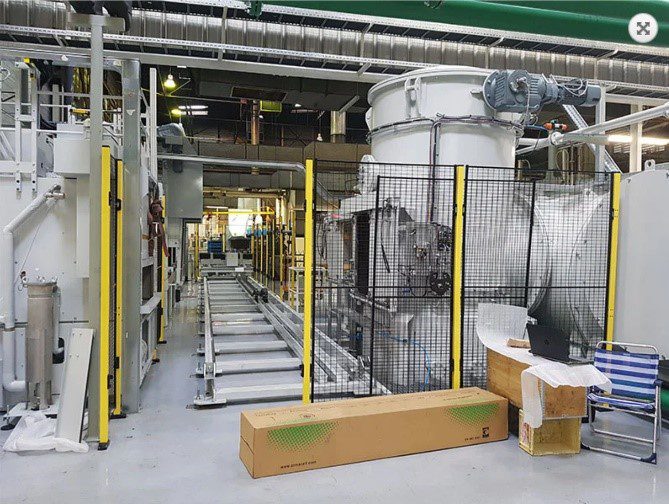

Do you want to solve energy problems and at the same time reduce the emission footprint of your distillery? Then this is a completely extraordinary offer for you of the complete ECM line, type Flex ICBP200 with oil hardening.

The line was built after the Nissan plant in Barcelona, after the installation and operation of the entire line, Nissan decided to close the entire plant. It is therefore an almost new device that will be covered by a full warranty. The whole assembly consists of:

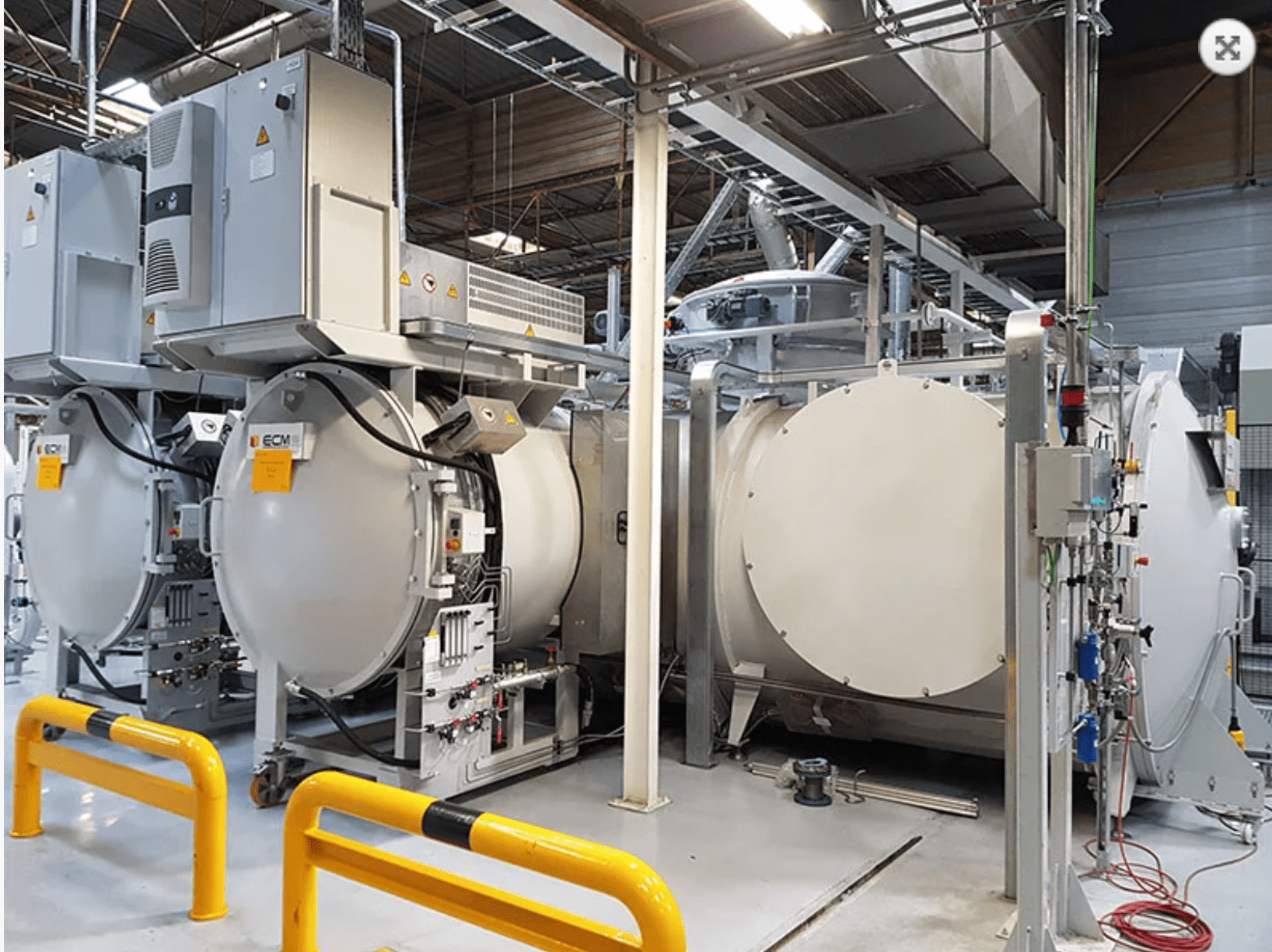

Two electrically heated ICBP carburizing cells with a maximum working temperature of 1050 °C, with rear door for maintenance, octagonal heating chamber with extreme insulation (80 mm), useful height 750 mm, temperature uniformity Class 2, +/-5ºC,
IN/OUT loading chamber with vacuum seal, thermally insulated,
Quenching module for oil quenching of the latest generation, also used as output or output module, oil temperature up to 180 °C
Transport tunnel with 6 positions
Internal loading trolley (designed for a gross load of 750 kg),
Vacuum units (2 for vacuum, 2 for process including one group for backup)
2 tempering furnaces up to 250 °C
Assembly of external conveyors
2 cooling positions
Gas distribution panels for C2H2 and N2
Nitrogen tank to ensure a neutral environment above the oil bath
The cooling system
Compliance with the NMISA technical specification
Energy management system (Thyritop units)

Technical parameters:

Type: ICBP Flex 200 with oil hardening
Payload: 1000 x 610 x 750 (depth, width, height) Max. 750 kg
Maximum temperature: 1050 °C
Working temperature: 800°C–1000°C
Working pressure: 4 to 20 mbar
Installation height: 1,100 mm

Fully automated system controlled by “Intouch” supervision and Siemens automation

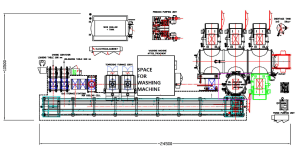

The device can be expanded with an additional carburizing cell and a module with gas hardening up to 25 bar. The line does not include a washing machine. The above layout can be modified according to the customer’s request
